12. Custom Blocks: Description Lists and Movie Runtime

Core blocks cover most layout needs, but some HTML structures have no core equivalent. Description lists (<dl>, <dt>, <dd>) and semantic time elements (<time>) are two examples. This lesson builds custom blocks for both and revisits the single templates to use them.

Learning Outcomes

1. Understand a custom block's anatomy: block.json, index.js, render.php, style.css.
2. Know how to build parent/child block relationships using parent and allowedBlocks.
3. Be able to create a dynamic block that renders via PHP.
4. Understand how usesContext lets a block read data from the query loop.
5. Know how get_block_wrapper_attributes() handles wrapper output.

info

To sync your theme with the finished product, run these commands:

mkdir -p themes/10up-block-theme/blocks
cp -r themes/fueled-movies/blocks/dl themes/10up-block-theme/blocks/dl
cp -r themes/fueled-movies/blocks/dl-item themes/10up-block-theme/blocks/dl-item
cp -r themes/fueled-movies/blocks/dt themes/10up-block-theme/blocks/dt
cp -r themes/fueled-movies/blocks/dd themes/10up-block-theme/blocks/dd
cp -r themes/fueled-movies/blocks/movie-runtime themes/10up-block-theme/blocks/movie-runtime

Run npm run build when complete.

Tasks

1. Copy blocks from the answer key

Copy the block directories listed above from the fueled-movies theme and rebuild.

The theme's src/Blocks.php already auto-registers any block with a block.json in the blocks/ directory, so no additional PHP registration is needed.

2. Walk through the DL block family

The description list system is a four-block hierarchy for displaying movie and person metadata:

tenup/dl              - Parent: the <dl> wrapper
└── tenup/dl-item     - Child: a term+description pair
    ├── tenup/dt      - Leaf: the <dt> term
    └── tenup/dd      - Leaf: the <dd> description (can contain other blocks)

Enforcing structure with parent and allowedBlocks

The nesting rules are defined in each block's block.json:

blocks/dl-item/block.json (partial)

{
    "name": "tenup/dl-item",
    "title": "Description List Item",
    "parent": ["tenup/dl"]
}

blocks/dt/block.json (partial)

{
    "name": "tenup/dt",
    "title": "Description List Term",
    "parent": ["tenup/dl-item"]
}

• parent restricts where a block can be inserted. tenup/dl-item can only exist inside tenup/dl. tenup/dt and tenup/dd can only exist inside tenup/dl-item.*
• The DL block uses InnerBlocks to accept child blocks. The editor automatically filters the inserter to only show allowed children.

* Alternatively, there is also ancestor to be allowed at any level within a blocks nested innerblocks

Dynamic rendering with render.php

At 10up we build dynamic blocks: blocks that render on the server via PHP. The render.php file is referenced as render in block.json:

blocks/dl/block.json (partial)

{
    "name": "tenup/dl",
    "render": "file:./render.php",
    "editorScript": "file:./index.js",
    "style": "file:./style.css"
}

The PHP render template receives three variables:

blocks/dl/render.php

<?php
/**
 * @var array    $attributes Block attributes.
 * @var string   $content    Block content (inner blocks).
 * @var WP_Block $block      Block instance.
 */

if ( empty( trim( $content ) ) ) {
    return;
}

$block_wrapper_attributes = get_block_wrapper_attributes();
?>

<dl <?php echo $block_wrapper_attributes; ?>>
    <?php echo $content; ?>
</dl>

• $attributes: the block's saved attributes (from block.json)
• $content: the rendered HTML of inner blocks (already processed by WordPress)
• $block: the full WP_Block instance (access context via $block->context when usesContext is set in block.json)

get_block_wrapper_attributes() generates the correct wrapper attributes (classes, styles, IDs) based on block supports. Always use this instead of building class names manually.

tip

Dynamic blocks avoid deprecation headaches: the markup isn't saved to the database, so you can change it anytime without migration scripts. This is why 10up uses dynamic blocks as the standard.

The editor component

The editor side uses useBlockProps and useInnerBlocksProps from @wordpress/block-editor:

blocks/dl/index.js

import { registerBlockType } from '@wordpress/blocks';
import { InnerBlocks } from '@wordpress/block-editor';
import { BlockEdit } from './edit';
import metadata from './block.json';

registerBlockType(metadata, {
    edit: BlockEdit,
    save: () => <InnerBlocks.Content />,
});

For dynamic blocks, the save function returns <InnerBlocks.Content /> (if the block has inner blocks) or null (if it doesn't). The actual frontend markup comes from render.php.

Auto-registration

You don't need to manually register blocks. src/Blocks.php globs dist/blocks/*/block.json and calls register_block_type_from_metadata() for each:

src/Blocks.php (simplified)

public function register_theme_blocks() {
    $block_json_files = glob( TENUP_BLOCK_THEME_BLOCK_DIST_DIR . '*/block.json' );

    foreach ( $block_json_files as $filename ) {
        $block_folder = dirname( $filename );
        register_block_type_from_metadata( $block_folder );
    }
}

Drop a folder with a block.json into blocks/ and it's automatically available.

3. Walk through the Movie Runtime block

The tenup/movie-runtime block demonstrates reading data from the post via block context:

blocks/movie-runtime/block.json (partial)

{
    "name": "tenup/movie-runtime",
    "usesContext": ["postId", "postType"],
    "render": "file:./render.php"
}

blocks/movie-runtime/render.php (simplified)

$post_id = $block->context['postId'] ?? null;
if ( ! $post_id ) {
    return;
}

$runtime = get_post_meta( $post_id, 'tenup_movie_runtime', true );
$hours   = $runtime['hours'] ?? '0';
$minutes = $runtime['minutes'] ?? '0';

if ( '0' === $hours && '0' === $minutes ) {
    return;
}
?>

<time <?php echo get_block_wrapper_attributes( [
    'datetime' => esc_attr( 'PT' . $hours . 'H' . $minutes . 'M' ),
] ); ?>>
    <?php // renders "2h 28m" with ARIA labels ?>
</time>

The usesContext declaration in block.json tells WordPress to pass postId and postType from the query loop context. This lets the block read meta for whatever post it's rendering inside, without hardcoding a post ID.

4. Revisit single templates

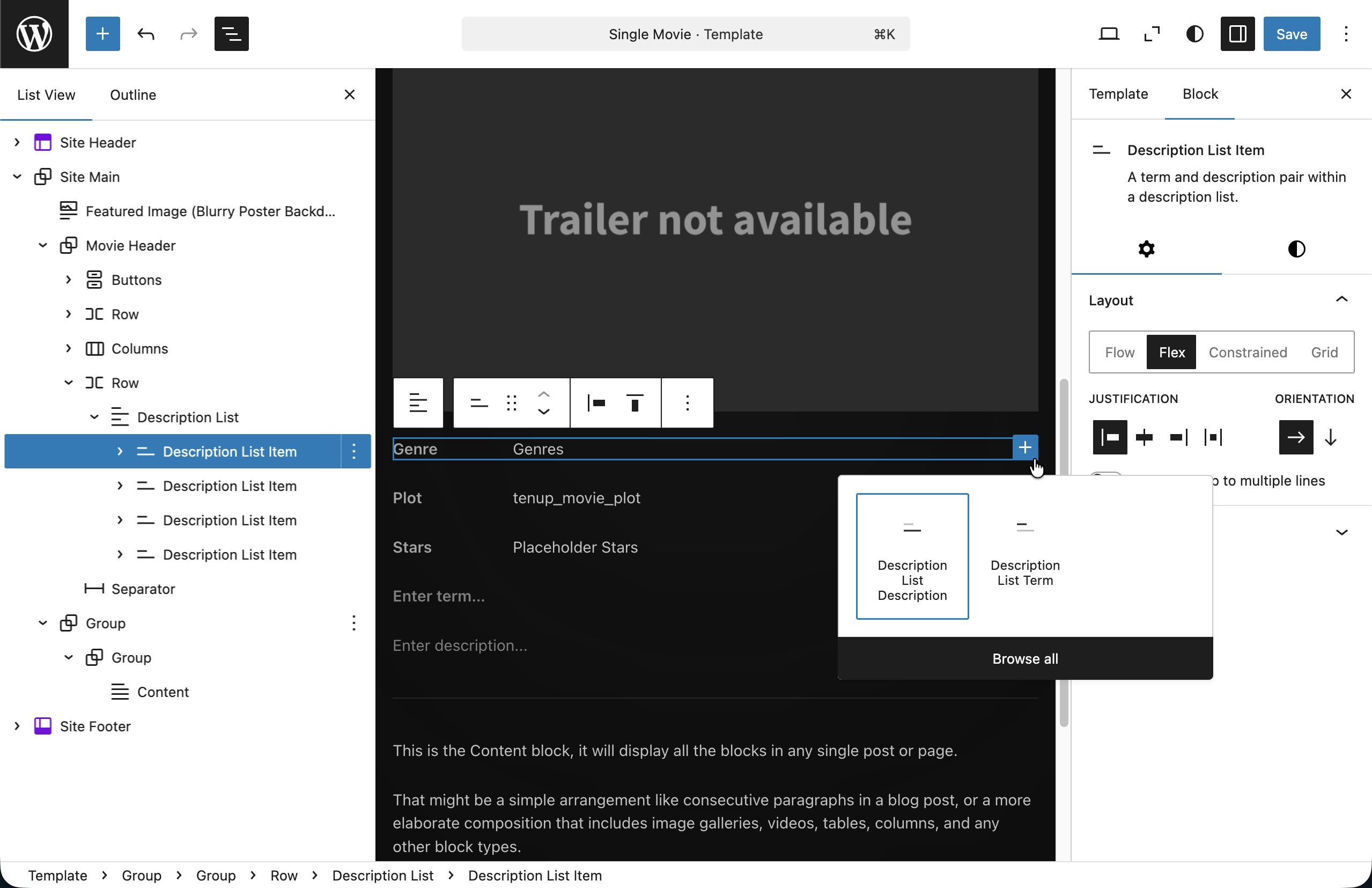

Update both single templates in the Site Editor to use the new blocks:

Single Movie (templates/single-tenup-movie.html):

• Wrap plot, stars, and genre in tenup/dl blocks
• Add tenup/movie-runtime to the metadata row

Notice how the tenup/dd blocks contain bound Paragraphs from Lesson 10. The Plot field uses core/post-meta (reading directly from meta), while the Stars field uses our custom tenup/block-bindings source (querying Content Connect relationships and returning linked names). The DL blocks provide the semantic HTML structure; the bindings provide the dynamic data.

warning

Is it worth mentioning once more here that our bindings will still return an empty paragraph tag if they are not set (i.e. - no Plot meta or Stars relationship).

For our custom binding, we can return the fallback in our php callback if we wish, but our for our core/post-meta binding we would add our fallback here in the template.

DL usage example in single-tenup-movie.html

<!-- wp:tenup/dl {"style":{"layout":{"selfStretch":"fill"}},"layout":{"type":"default"}} -->
    <!-- wp:tenup/dl-item {"layout":{"type":"flex","flexWrap":"nowrap","verticalAlignment":"top"}} -->
        <!-- wp:tenup/dt {"content":"Genre","style":{"layout":{"selfStretch":"fixed","flexSize":"5.5rem"}},"textColor":"text-secondary"} /-->
        <!-- wp:tenup/dd {"style":{"layout":{"selfStretch":"fill"}}} -->
            <!-- wp:post-terms {"term":"tenup-genre"} /-->
        <!-- /wp:tenup/dd -->
    <!-- /wp:tenup/dl-item -->

    <!-- wp:tenup/dl-item {"layout":{"type":"flex","flexWrap":"nowrap","verticalAlignment":"top"}} -->
        <!-- wp:tenup/dt {"content":"Plot","textColor":"text-secondary"} /-->
        <!-- wp:tenup/dd -->
            <!-- wp:paragraph {
                "metadata": {
                    "bindings": {
                        "content": {
                            "source": "core/post-meta",
                            "args": { "key": "tenup_movie_plot" }
                        }
                    }
                }
            } -->
            <p></p>
            <!-- /wp:paragraph -->
        <!-- /wp:tenup/dd -->
    <!-- /wp:tenup/dl-item -->

    <!-- wp:tenup/dl-item {"layout":{"type":"flex","flexWrap":"nowrap","verticalAlignment":"top"}} -->
        <!-- wp:tenup/dt {"content":"Stars","textColor":"text-secondary"} /-->
        <!-- wp:tenup/dd -->
            <!-- wp:paragraph {
                "metadata": {
                    "bindings": {
                        "content": {
                            "source": "tenup/block-bindings",
                            "args": { "key": "movieStars" }
                        }
                    }
                }
            } -->
            <p></p>
            <!-- /wp:paragraph -->
        <!-- /wp:tenup/dd -->
    <!-- /wp:tenup/dl-item -->
<!-- /wp:tenup/dl -->

Single Person (templates/single-tenup-person.html):

• Wrap biography, born, birthplace, died, deathplace, and movies in tenup/dl blocks

Export the updated markup back to the theme files.

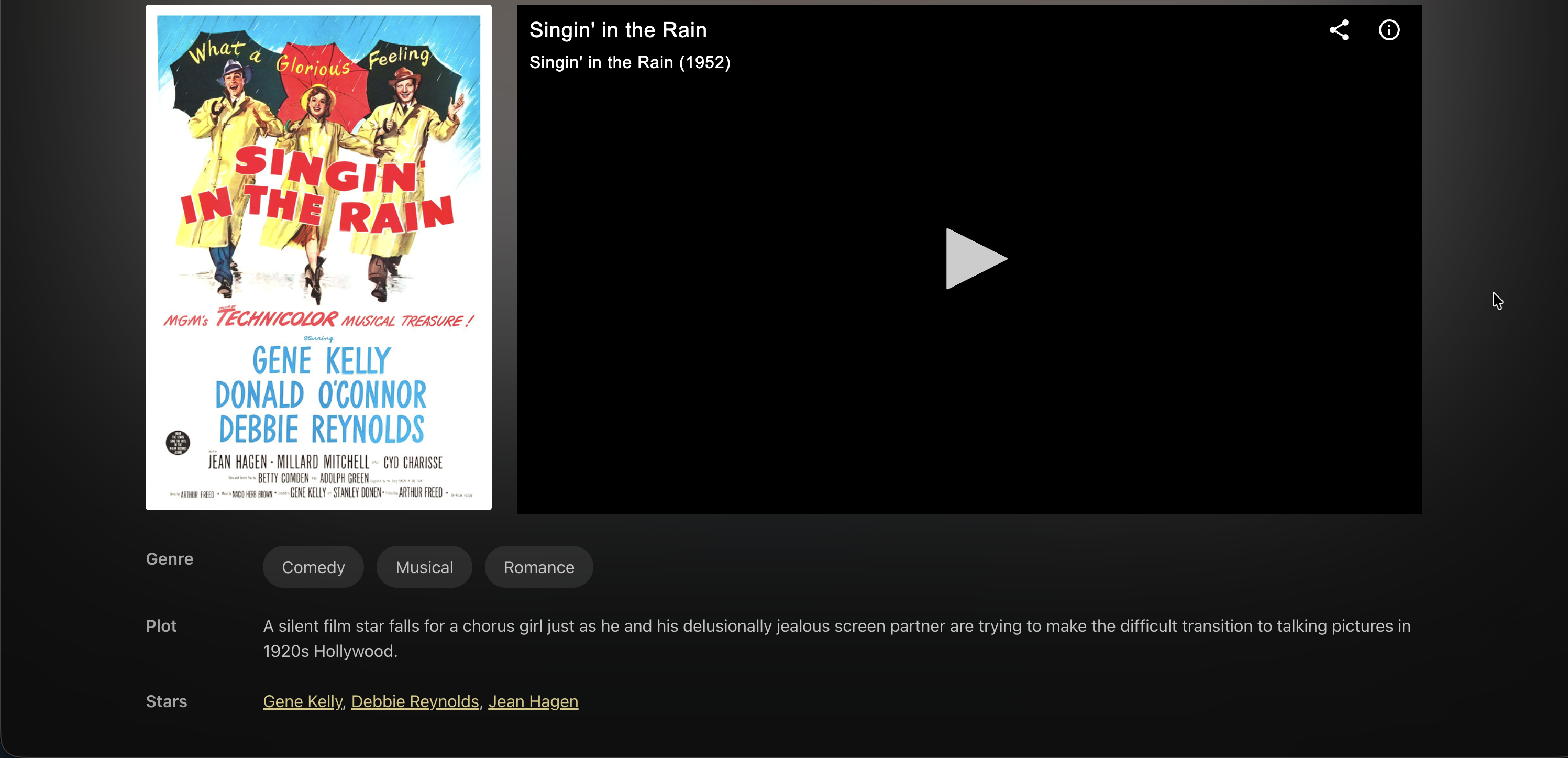

Our Description List blocks on the frontend with bound innerblock content

Files changed in this lesson

File	Change type	What changes
blocks/dl/	New	Block metadata, edit component, render.php, styles
blocks/dl-item/	New	parent: ["tenup/dl"], render.php
blocks/dt/	New	parent: ["tenup/dl-item"], inline editable term
blocks/dd/	New	parent: ["tenup/dl-item"], inner blocks container
blocks/movie-runtime/	New	usesContext: ["postId", "postType"], semantic <time> output
templates/single-tenup-movie.html	Revisited	Plot/Stars/Genre wrapped in tenup/dl blocks; tenup/movie-runtime added to metadata row
templates/single-tenup-person.html	Revisited	All metadata paragraphs wrapped in tenup/dl blocks

Ship it checkpoint

• DL blocks enforce nesting: only dl-item inside dl, only dt/dd inside dl-item
• Movie runtime displays as "2h 28m" with semantic <time> element
• Single movie template has DL with Genre, Plot, Stars
• Single person template has DL with Biography, Born, Birthplace, Died, Deathplace, Movies

Takeaways

• Custom blocks: block.json for metadata, index.js for the editor, render.php for the frontend.
• Dynamic blocks (PHP-rendered) avoid deprecation problems: the 10up standard.
• Use parent and allowedBlocks to enforce nesting rules in parent/child block systems.
• get_block_wrapper_attributes() handles wrapper classes, styles, and IDs. Always use it.
• usesContext in block.json lets blocks read data from query loop context.
• Drop a folder with block.json into blocks/ and auto-registration handles the rest.
